Low Maintenance Quartz Microbalance Technology
Made in United Kingdom. brand Michell, model QMA401
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

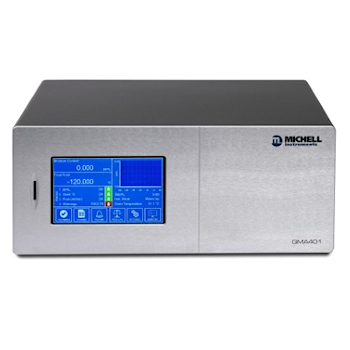

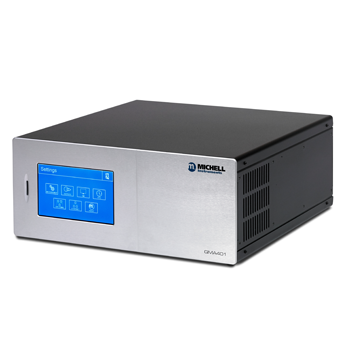

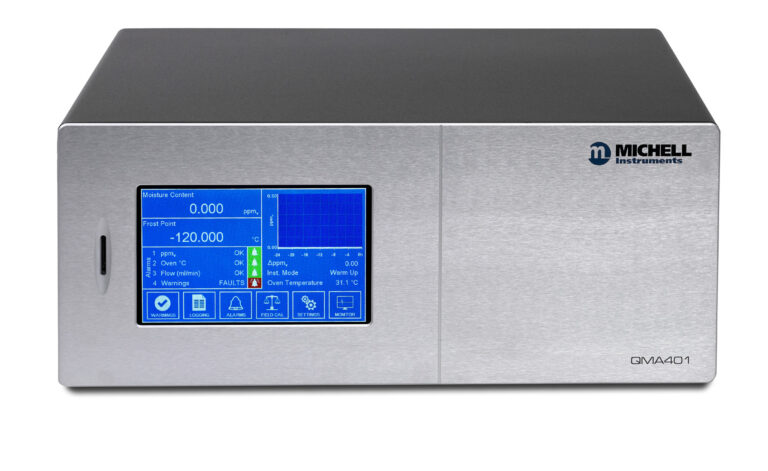

The next generation Advanced Quartz Crystal Microbalance analyzer from Michell Instruments is designed to provide reliable, fast and accurate measurement of trace moisture content in a variety of applications where keeping moisture to a minimum is of critical importance.
The analyzer provides consistently accurate measurements of trace moisture. This consistency is achieved using a self-calibration system, which adjusts the sensor with reference to an internal moisture generator. The moisture generator is supplied with a calibration traceable to NPL and NIST, so long term stability of its measurements is guaranteed.
Suitable for use with natural gas containing up to 20% hydrogen with no further modification required
Applications
| Performance | |
| Measurement Technology | Fast Response Quartz Crystal Microbalance |
| Calibrated Range | 0.1…700 ppmV |
| Measurement Range | 0.1…2000 ppmV |
| Accuracy | ±10% of reading from 1 to 2000 ppmV 0.1 ppmV between 0.1 and 1 ppmV |
| Repeatability | ±5% of reading from 1 to 2000 ppmV ±0.1 ppmV between 0.1 and 1 ppmV |
| Detection Limit | 0.1 ppmV |
| Available Units | ppmV, ppmW, mg/nm³, vapor pressure (Pa), frost point (°C), lb/MMscf |
| Response Speed | T63 <2 mins to step change in either direction T95 <5 mins to step change in either direction |
| Automatic Calibration | Internal moisture generator source calibrated traceable to NPL and NIST |
| Sensitivity | 0.1 ppmV or 1% of reading, whichever is greater |
| Electrical Specifications | |
| Supply Voltage | 85…264 V AC, 47/63 Hz |
| Max Power Consumption | 150 VA |
| Alarms | 1 x System alarm, volt-free change-over (FORM C) 3 x process alarms, selectable for various parameters, volt-free changeover (FORM C) |
| Communications | Analog Outputs: 2 channels, user selectable 4…20 mA or 1…5 V Digital Communications: RS485/USB Modbus RTU, Ethernet Modbus TCP |
| Data Logging | Direct logging to SD card or PC via application software |
| Local Interface | 7” color touch screen LCD |
| Operating Conditions | |
| Inlet Pressure | 1 barg (14.5 psig) max With optional inlet pressure regulator: 300 barg (4351 psig) max |
| Outlet Pressure | Atmospheric |
| Sample Flow | 300 ml/min total flow without bypass |
| Sample Gas Temperature | 0…+100 °C (+32…+212 °F) |
| Operating Environment | +5…+45 °C (+41…+113 °F) up to 90% rh |
| Mechanical Specifications | |
| Enclosure | 19” Rackmount, 4U x 434 mm |
| Gas Connections | 1/4” VCR(M) |
| Weight | 13.5 kg (29.8 lbs) |
You can request the necessary certificates, documentation, instructions and user guide for Michell QMA401 using the special form.
You can buy Michell QMA401 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell QMA401 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
