Fast and Precise Moisture Measurement in Natural Gas
Made in United Kingdom. brand Michell, model OptiPEAK TDL600
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

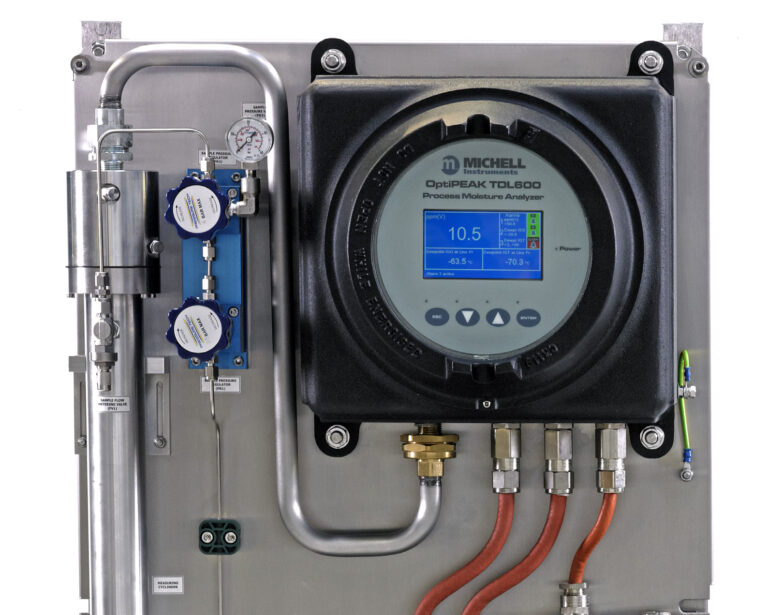

The next generation TDLAS Analyzer for automatic online measurement of moisture in variable compositions of natural gas and biomethane. The OptiPEAK TDL600 Tuneable Diode Laser Analyzer employs the latest techniques in laser absorption spectroscopy and signal processing power to offer a robust high performance analyzer, designed specifically for the measurement of moisture in natural gas. This non-contact technology requires minimal maintenance, even in demanding applications such as changing methane concentrations or sour gas. The analyzer is fully hazardous area certified and delivers class-leading measurement performance, stability and detection sensitivity.
Suitable for use with natural gas containing up to 20 % hydrogen with no further modification required.
Applications
| Measurement Technology | Tunable Diode Laser Spectroscopy (TDLAS) |
| Measurement Range | 1…1000 ppmV |
| Accuracy * | ± 1 ppmV or ±3 % of reading, whichever is greater |
| Repeatability * | ±0.5 ppmV or ±1.5 % of reading, whichever is greater |
| Limit of Detection | 1 ppmV |
| Available Units | ppmV, lb/MMSCF, mg/Nm³, dew point °C or °F (ISO 18453 or IGT#8) |
| Response Speed | Display update 2…3 s |
| Environmental Conditions | Indoor version: +10…+45 °C (+50…+113 °F) Outdoor version*: -20…+45 °C (-4…+113 °F) Outdoor with cooling option*: -20…+55 °C (-4…+131 °F) |
| Electrical Specifications | |
| Supply Voltage | 110 V AC or 230 V AC, 50/60 Hz |
| Power Requirements | Indoor system: 180 W Outdoor system: 180 W…380 W (option dependent) |
| Analog Signals | Input: 2 x 4…20 mA user configurable Output: 3 x 4…20 mA, 3 alarms 250 V AC, 3 A (volt-free contacts) |
| Digital Communications | RS485 ModBus RTU |
| Data Logging | Logs all process variables with a user-selectable sample period in the range of 10 s to 1 day |
| Local Interface | 4.3” color LCD with touch-pad operation |
| Electrical Connections | 3 x M20 entries for cable glands |
Calibration
| Factory Method | 3 point, traceable to NPL and NIST |
| Recommended Calibration | None required, dependent on user or quality system requirements |
| Physical Specifications | |
| Sample Flow Rate | 0.5 Nl/min cell sample 1…5 Nl/min sample filter by-pass |
| Inlet Pressure | Maximum 100 barg (1450 psig) |
| Outlet Pressure | Cell vent 0.7…1.4 bara (10…20.3 psia) Filter by-pass maximum 3 barg |
| Enclosure Type/Packaging | Aluminum alloy, explosion proof, polyester coated, IP66, NEMA 4 |
| Gas Connections | 1/4” NPT (F) |
| Weight | 40…75 kg (88…165 lbs) (approximate – depending on configuration) |
| Sample System Enclosure | 304L or 316L stainless steel |
| Hazardous Area | |
| ATEX/UKEX IECEx: cQPSus: | II 2 G Ex db ib op is IIC T5 Gb Ex db ib op is IIC T5 Gb Tamb -20 °C…+60 °C Class I, Division 1, Groups A, B, C, D, T5, Tamb -20 °C…+60 °C |
| Additional Approvals | TRCU 012 (EAC), PESO (India), NEPSI (China), Ukraine Ex, Kazakhstan Pattern Approval (GOST-K), ECAS (UAE) |
*If installed outside, the analyzer must be shaded from direct sunlight
to prevent heating effects through sun radiation
