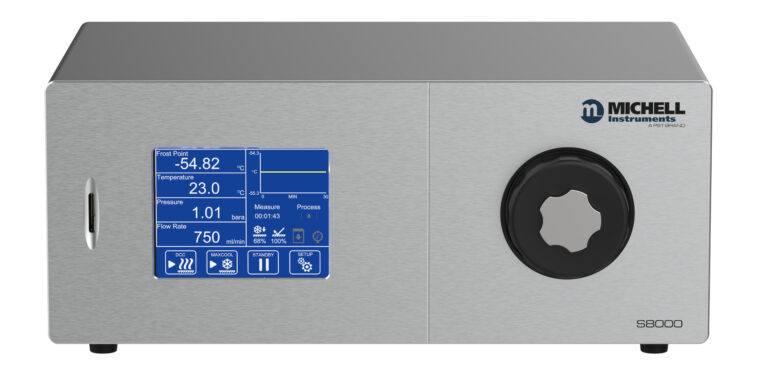

The S8000 precision hygrometer provides a direct measurement of dew point, temperature and pressure. Suitable for both industrial and laboratory applications, the instrument is compact and self-contained.
Based on the design of our flagship S8000 -100 High-Precision Chilled Mirror Hygrometer,
at the heart of the new instrument is a unique advanced optics system to achieve reliable, repeatable measurements of frost points down to -60 °C.
Dew-point measurement is based on the proven, fundamental optical chilled mirror measurement principle, giving long-term reliable humidity measurement over the entire operating range. The S8000 uses this measurement to offer a range of available measurement units including ppmV, absolute humidity, relative humidity and ppmW.
Applications
| Dew-Point Sensor Performance | |
| Measurement Technology | Chilled Mirror |
| Accuracy* | ±0.1 °C (±0.18 °F) |
| Reproducibility | ±0.05 °C (±0.09 °F) |
| Measurement Range | -60…+40 °Cdp (-76…+104 °Fdp) |
| Operating Pressure | Low Pressure Version: 0…1 barg / 14.5 psig High Pressure Version: 0…20 barg / 290 psig |
| Sample Flow Rate | 500…1000 ml/min (recommended 750 ml/min) |
| Detection System | RRS Triple Detection |
| Remote PRT Probe (Optional) | |
| Temperature Measurement | 4 wire Pt100, 1/10 DIN class B |
| Measurement Accuracy | ±0.1 °C (±0.18 °F) |
| Cable Length | 2 m (6.6 ft) (250 m (820 ft) max) |
| Flow Sensor | |
| Measurement Accuracy | Typically ±5% uncalibrated |
| Measurement Range | 0…1000 ml/min |
| Integrated Pressure Sensor | |
| Measurement Range | 0…25 bara (0…377 psia) or 0…1.6 bara (0…23.5 psia) |
| Measurement Accuracy* | 0.25% Full Scale |
| Measurement Units | psia, bara, kPa or MPag |
| Monitor | |
| Resolution | User-selectable to 0.001 dependent on parameter |
| Measurement Units | °C and °F for dew point and temperature %RH, g/m3, g/kg, ppmV, %Vol, ppmW for calculated humidities |
| Outputs | Analog: Two channels, user-selectable 4…20 mA, 0…20 mA or 0…1 V Digital: Modbus RTU over USB or Modbus TCP over Ethernet Alarm: Two volt-free changeover contacts, one process alarm, one fault alarm; 1 A @ 30 V DC |
| HMI | 5.7” LCD with touchscreen, white on blue graphics |
| Data Logging | SD Card (512Mb supplied) and USB interface SD Card (FAT-32) – 32Gb max. that allows 24 million logs or 560 days, logging at 2-second intervals |
| Environmental Conditions | -20…+40 °C (-4…+104 °F) |
| Mechanical Specifications | |

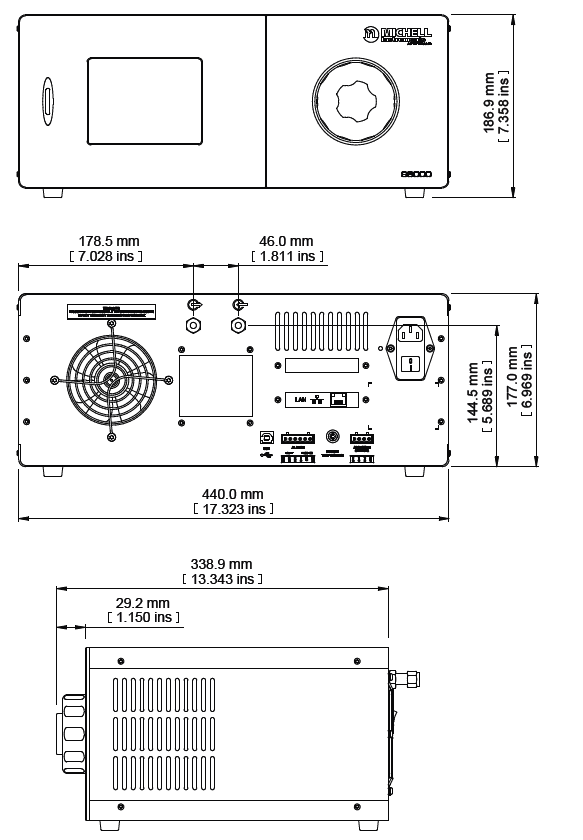

| Dimensions (Instrument) | 187 x 440 x 343 mm (7.36 x 17.32 x 13.5 in) |
| Weight | 12.3 kg (27.11 lb) |
| General | |
| Process Connections | 6 mm Swagelok® (MALE) |
| Storage Temperature | -20…+50 °C (-4…+122 °F) |
| Calibration | 3-point traceable in-house calibration as standard; UKAS accredited calibrations optional – please consult Michell Instruments |
| Power Supply | 85…264 V AC, 47/63 Hz |
| Power Consumption | 120 VA |
| EMC – Class A Emissions Industrial Location Immunity | Complies with EN 61326-1:2021 |
