Offering Low-Drift Readings of Dew Point
Made in United Kingdom. brand Michell, model S8000 RS
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

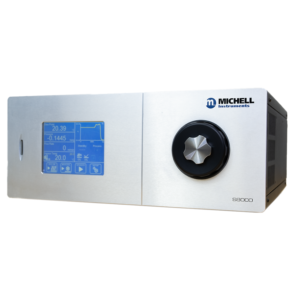

The Michell S8000 RS is a high-precision, low dew-point hygrometer designed to meet the demands of humidity calibration facilities and many high-value manufacturing and industrial applications. Based on the design for our flagship S8000 -100 High-Precision Chilled Mirror Hygrometer, at the heart of the new instrument is a unique advanced optics system to achieve reliable, repeatable measurements of low frost points down to -90 °C, with an accuracy of ±0.1 °C, without the need for additional cooling.
Applications
| Dew-Point Sensor | |
| Measurement Range | -90/-80…+20 °C (-130/-112…+68 °F) frost/dew point |
| Measurement Accuracy* | ±0.1 °C (±0.18 °F) |
| Reproducibility at -90/-80 °Cfp (-130/-112 °Ffp) | ±0.05 °Cdp (±0.09 °Fdp) for -90; ±0.025 °Cdp (±0.045 °Fdp) for -80 |
| Stability at -90 °Cfp (-130 °Ffp) | ±0.05 °C (±0.09 °F) |
| Speed of Response | <2 hours to ±0.25 °C (±0.45 °F) stability @ -90 °Cfp (-130 °Ffp) |
| Temperature Dependence at -90 °C (-130 °F) | ±0.003 °Cfp (±0.0054 °Ffp) environmental temperature change |
| Mirror | Gold-plated copper |
| Temperature Measurement | 4-wire Pt100, 1/10 DIN class B |
| Sample Flow Rate | 500…1000 ml/min (recommended 750 ml/min) |
| Sample Gas Pressure | 1 MPa (10 barg) max |
| Pressure Sensor | |
| Measurement Range | 0…1.6 bara (23.2 psia) or optional 16 bara (232 psia) |
| Measurement Accuracy | Accuracy 0.25% FS Typical thermal error 1.5% FS Typical drift 0.2% FS/p.a non-cumulative Temp Comp -20 °C…+80 °C (-4 °F…+176 °F) |
| Flow Sensor | |
| Measurement Range | 0…1000 ml/min |
| Measurement Accuracy | ±1.5% FS (10…100% of rated flow) |
* Measurement accuracy means maximum deviation between instrument under test and corrected reference. To this must be added the uncertainties associated with the calibration system and the environmental conditions during testing or subsequent use.
| Monitor | |
| Resolution | User selectable to 0.001 °C (0.0018 °F), depending on parameter |
| Measurement Units | °C dew/frost point, °C temperature, ml/min flow, bara pressure |
| Calculated Units | Relative humidity – %, Absolute humidity – g/m3, ppmV, Mixing Ratio – g/kg, Wet Bulb Temperature (Twb) – °C, °F, Water Vapor Pressure (wvp) – Pa, Pressure converted DP – °C, °F, Pressure – kPa, Barg, Psia, Psig |
| Outputs | Analog: 2 x active mA outputs, configurable 0…20 mA or 4…20 mA Digital: Modbus RTU over USB and Modbus TCP/IP Alarm: 1x Process Relay, 1x Alarm Relay, both Form C, 1 A, 30 V DC |
| User Interface | 5.7” LCD with touchscreen |
| Data Logging | SD Card (8GB supplied) and USB interface. Supports SD Card (FAT-32) – 32 GB max. that allows 24 million logs or 560 days, logging at 2-second intervals |
| Environmental Conditions | +5 °C…+30 °C (+41 °F…+86 °F) |
| Power Supply | 85…264 V AC |
| Power Consumption | 185 VA |
| Mechanical Specifications | |
| Dimensions (W x H x D) | 440 mm x 185 mm x 430 mm (17.32” x 7.28” x 16.93”) |
| Weight | 21.5 kg (47.4 lb) |
| Sample Gas Connections | Inlet: ¼” VCR Outlet: ¼” Swagelok tube |
| General | |
| Optional Remote Temperature Probe | 4-wire Pt100, 1/10 DIN class B, 2m cable |
| Calibration | 5-point UKAS calibration to -90 °Cfp (-130 °Ffp) or to -80 °Cfp (-112 °Ffp) |
You can request the necessary certificates, documentation, instructions and user guide for Michell S8000 RS using the special form.
You can buy Michell S8000 RS in UAE at a price starting from by request $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell S8000 RS price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
