The S332 Data Logger is a central device for monitoring compressed air and industrial gases, supporting up to 150 measuring channels via Modbus/RTU, Modbus/TCP, analog (0…20 mA, 4…20 mA, 0…10 V) and digital inputs.
It features a 7‑inch touchscreen, 10 GB internal memory (up to 4.5 billion data points) and a built‑in web server for remote access, and complies with FDA 21 CFR Part 11 (audit trail, electronic signature, role‑based user management).
Made in Germany. brand SUTO, model S332
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 276
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Managing compressed air data across multiple measurement points can become complex and inefficient. The S332 Display & Data Logger centralizes data acquisition, visualization, storage, and analysis into one powerful platform. Designed specifically for compressed air and industrial gas systems, the S332 delivers real-time visibility across the entire network — from generation to point of use.
Features
Applications
The S332 is designed for industrial facilities that require centralized monitoring and reliable data logging across compressed air and gas systems. Ideal for:
The S332 Display and Data Logger centralizes data acquisition, visualization, storage, and analysis into one powerful platform. Designed specifically for compressed air and industrial gas systems, the S332 delivers real time visibility across the entire network, from generation to point of use. Managing compressed air data across many measurement points can become complex and inefficient. The S332 brings every channel into one central unit.
Connect up to 150 channels and monitor your full compressed air network from a single 7 inch color touch screen. The S332 supports SUTO iTEC and third party sensors through Modbus/RTU, Modbus/TCP, analog, and digital inputs, so you can integrate existing measurement points without extra hardware.
Analog Sensor Input: Optional analog modules support 0…20 mA, 4…20 mA, 0…10 V, 0.5…4.5 V, and pulse signals with up to 8 analog channels.
Powerful Data Logging and Analysis
The integrated 10 GB data logger records up to 4.5 billion data points for long term trend analysis. You can export logged files for reporting, energy management, and compliance documentation. Customizable channel charts and real time trends make your data easy to read and act on.
Compliance Built In
User management, audit trail, and electronic signature features support FDA 21 CFR Part 11 requirements. Role based access with Admin, Operator, Auditor, and Manager accounts keeps system operation secure and fully traceable. This makes the S332 ideal for pharmaceutical and regulated industries.
Access From Anywhere
The integrated web server provides remote viewing and operation over your local network. With the optional 4G/LTE connection and the S4C Web platform, you can monitor, configure, export, and upload data to the SaaS cloud from any location.
Reliable Alarm Management
Configurable channel specific alarm thresholds with real time and historical alarm recording help you detect issues early and reduce risk. Built in relays, expandable up to ten, trigger immediate action when limits are exceeded.
Robust and Easy to Install
The IP65 rated housing protects the device in tough industrial conditions. The S332 supports both wall and panel mounting and is available in AC and DC versions.
The Successor to the S331
The S332 replaces the S331 with a larger 7 inch display, significantly expanded storage of 10 GB compared to 3 GB, and full FDA 21 CFR Part 11 compliance. Existing Modbus sensor networks connect without changes.
S332 and S331 at a Glance
| Feature | S332 | S331 |
| Screen Size | 7 inch | 5 inch |
| Screen Type | Capacitive touchscreen | Resistive touchscreen |
| Resolution | 1280 x 800 | 800 x 480 |
| Storage | 10 GB | 3 GB |
| Modbus Input | Up to 150 channels | 58 channels |
| Analog Sensors | Up to 8 | Up to 2 |
| Digital Sensors | Up to 8 | Up to 2 |
| Relay Outputs | Up to 10 | 2 |
| Power for Sensor | 50 W (AC), up to 168 W (DC) | 10 W (Compact), 50 W (Flex) |
| Configuration | S332 Local Display and S4C Web | S4C Display |
| FDA 21 CFR Part 11 | Yes (audit trail, electronic signature, multi user) | No |
| Web Server Remote Access | Supported (remote viewing and operation) | Not supported |
| Signal / Interface & Supply | |
| Input signals | |
| Modbus signal input | Modbus/RTU Master Modbus/TCP Master (up to 150 measuring channels) |
| Analog input (Optional) | 0 … 20 mA/4 … 20 mA, 0 … 10 V/0.5 V Up to 2 analog input modules, each module has 4 analog input channels. |
| Output signals | |
| Alarm output | Built-in 2 relays Up to 2 relay modules (optional), each module has 4 relays |
| Modbus signal output | 1 x Modbus/RTU(Slave) 1 x Modbus /TCP |
| Data interface | |
| Connection | Modbus/TCP Master (Ethernet) Modbus/TCP Slave (Ethernet) Modbus/RTU Master ( RS 485) Modbus/RTU Slave ( RS 485) USB-C port |
| Power supply | |
| AC version | 85 … 305 VAC, 60W, 50/60Hz |
| DC version | 18 … 30 VDC, Max. 7 A |
| Sensor supply | |
| AC version | 24 V, max. 50 W |
| DC version | 24 V, max. 150 W |
| General data | |
| Display | |
| Integrated | 7” high-resolution graphic display, Resolution: 1280 x 800 pixels touch screen |
| Data logger | |
| Storage | Internal, 10 GB, 530 days typical (example: 50 channels @ 1s sampling) |
| Material | |
| Housing material | PC + ABS |
| Miscellaneous | |
| Protection class | IP65 |

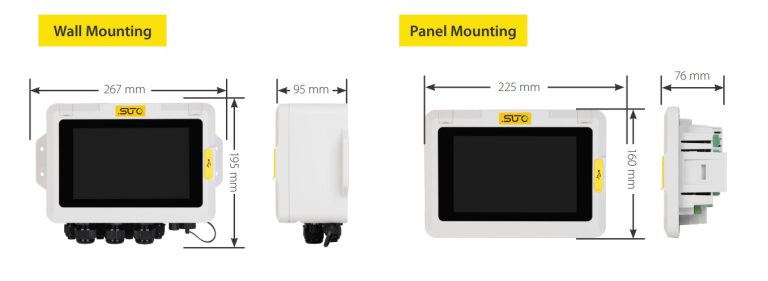

| Dimensions | Panel or wall mounting, see below |
| Cable entry | 3 x M20 PG connector (each for 2 cables, Ø5 … 6 mm) 4 x M12 PG connector (each for 1 cable, Ø5 … 6 mm) |
| Installation | Panel or wall mounting |
| Approvals | CE, FCC |
| Weight | 1 1.8 kg (depending on the installed options and housing) |
| Environment Data | |
| Operating temperature | 0 … +45 °C |
| Operating humidity | <90%, no condensation |
| Transportation temperature | -20 … +60 °C |
| Storage temperature | -20 … +70 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| D500 3321 | S332 Display, Wall mountable casing, Modbus/RTU (Master & Slave), Modbus/TCP (Master & Slave), 2 Alarm Relays integrated, Power Supply Input: 85 ... 305 VAC | Delivery time from 12 weeks | from 1 334$ |
-
+
|
|
| D500 3322 | S332 Display, Wall mountable casing, Modbus/RTU (Master & Slave), Modbus/TCP (Master & Slave), 2 Alarm Relays integrated, Power Supply Input: 18 ... 30 VDC | Delivery time from 12 weeks | from 1 334$ |
-
+
|
|
| D500 3323 | S332 Display, Panel mount version, Modbus/RTU (Master & Slave), Modbus/TCP (Master & Slave), 2 Alarm Relays integrated, Power Supply Input: 85 ... 305 VAC | Delivery time from 12 weeks | from 1 276$ |
-
+
|
|
| D500 3324 | S332 Display, Panel mount version, Modbus/RTU (Master & Slave), Modbus/TCP (Master & Slave), 2 Alarm Relays integrated, Power Supply Input: 18 ... 30 VDC | Delivery time from 12 weeks | from 1 276$ |
-
+
|
|
| A3001 | Data Logger, 10 GB Memory, 530 days typical (example: 50 channels @ 1s sampling) | Delivery time from 12 weeks | from 151$ |
-
+
|
|
| A3002 | No Data Logger | Delivery time from 12 weeks | On request |
-
+
|
|
| A3003 | Option Slot 1: Analog Input Module, 4 Channels, Current: 0 ... 20 mA / 4 ... 20 mA | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| A3004 | Option Slot 1: Analog Input Module, 4 Channels, Voltage: 0 ... 10 V / 0.5 V | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| A3005 | Option Slot 1: Digital Input Module, 4 Channels | Delivery time from 12 weeks | from 244$ |
-
+
|
|
| A3006 | Option Slot 1: Alarm Relay Module, 4 Relays, Rating: 3A 230 VAC / 3A 30 VDC | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| A3007 | Option Slot 1: No Option in Slot | Delivery time from 12 weeks | On request |
-
+
|
|
| A3003 | Option Slot 2: Analog Input Module, 4 Channels, Current: 0 ... 20 mA / 4 ... 20 mA | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| A3004 | Option Slot 2: Analog Input Module, 4 Channels, Voltage: 0 ... 10 V / 0.5 V | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| A3005 | Option Slot 2: Digital Input Module, 4 Channels | Delivery time from 12 weeks | from 244$ |
-
+
|
|
| A3006 | Option Slot 2: Alarm Relay Module, 4 Relays, Rating: 3A 230 VAC / 3A 30 VDC | Delivery time from 12 weeks | from 232$ |
-
+
|
|
| A3007 | Option Slot 2: No Option in Slot | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0140 | SmartBox Pro,4G/LTE communication module, upload data to SaaS | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0136 | WTU-S, Wireless Transmission Unit for stationary installation, Slave (default) / Repeater with 0.5 m M12 connection cable, M12 connector for power supply, all installation accessories included | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0137 | WTU-S, Wireless Transmission Unit for stationary installation, Master with 1 m open ends, M12 connector for power supply, all installation accessories included | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0104 | Sensor cable 5 m with M12 connector, open ends, 5 pole, AWG 24 (0.2 mm²) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0105 | Sensor cable 10 m with M12 connector, open ends, 5 pole, AWG 24 (0.2 mm²) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0165 | Sensor cable, 5 pole, AWG 24 (0.2 mm2), 50 m reel | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0166 | Sensor cable, 5 pole, AWG 24 (0.2 mm2), 100 m reel | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0167 | RS-485 (modbus) cable, 4 pole twisted pairs with shield, AWG 24 (0.2 mm2), 50 m reel | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0168 | RS-485 (modbus) cable, 4 pole twisted pairs with shield, AWG 24 (0.2 mm2), 100 m reel | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 3310 | M12-Splitter, for Modbus Daisy chain wiring, including 2 x M12 plug | Delivery time from 12 weeks | On request |
-
+
|
|
| C219 0055 | M12 connctor with RS-485 termination resistor (120 Ω), for Modbus daisy chain termination | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0161 | M12 male to M8 female converter cable for M12-Splitter | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0106 | AC Power cable with mains plug, 1.8 m | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0011 | RS-485 repeater | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0331 | RS-485 / USB converter | Delivery time from 12 weeks | On request |
-
+
|
|
| D554 0031 | 8-channel current input module, 0 ... 20 mA, Modbus/ RTU | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S332 using the special form.
You can buy SUTO S332 in UAE at a price starting from 1276 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S332 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
