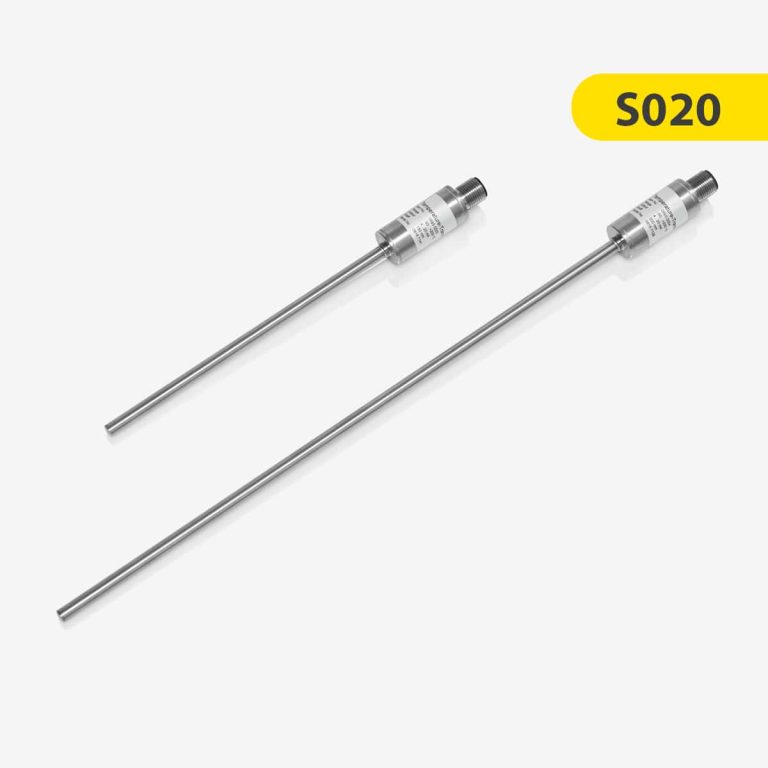

The S020 temperature sensor is a simple and affordable solution for monitoring the temperature of compressed air and gases, suitable for measuring liquids, steam, compressed air, and gases in industrial applications, including inlet/outlet temperature monitoring for dryers and compressor outlets.
Made in Germany. brand SUTO, model S020
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $464
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The temperature sensor is designed to measure the temperature of liquid, vapor, compressed air and gases within the permissible operating parameters.
Key Features:
| MEASUREMENT | |
| Temperature | |
| Accuracy | 0.5 % o.RGD + 0.2 % FS |
| Measuring range | -50 … +200 °C |
| Sensor | PT1000 Class A |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA, (2 wire loop powered) |
| Scaling | 4 mA = -50 °C, 20 mA = +200 °C |
| Load | Max 250 Ohm |
| Supply | |
| Voltage supply | 16 … 30 VDC |
| Current consumption | Max. 20 mA |
| Data interface | |

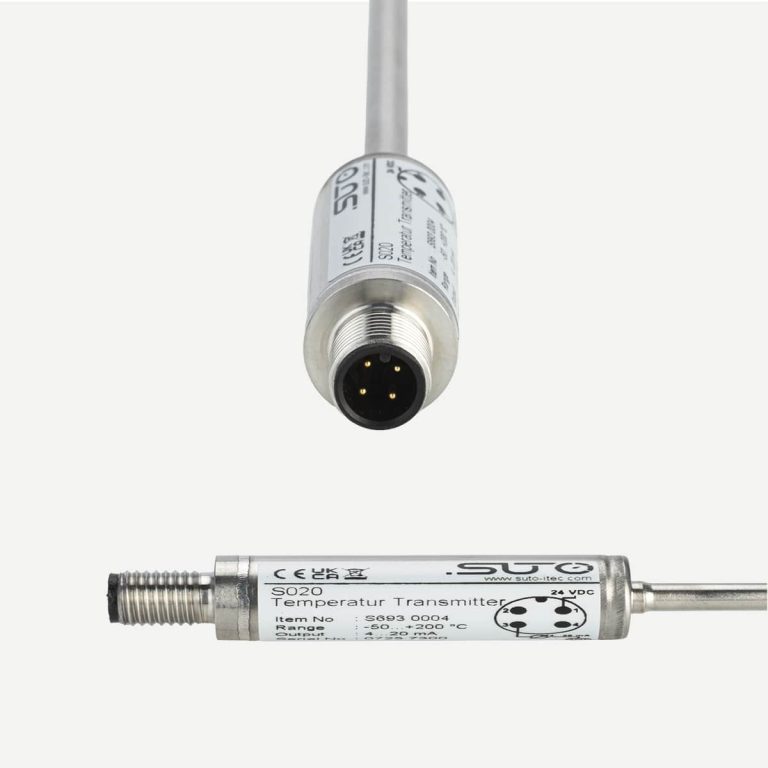

| Connection | M12 connector |
| GENERAL DATA | |
| Material | |
| Process connection | Stainless steel 1.4571 |
| Housing | Stainless steel 1.4571 |
| Metal parts | Stainless steel 1.4571 |
| Miscellaneous | |
| Electrical connection | M12 connector |
| Protection class | IP67 |
| Approvals | CE |
| Process connection | 6 mm Fitting |
| Weight | 0.08 kg |
| Operating conditions | |
| Ambient temperature | -40 … +90 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|

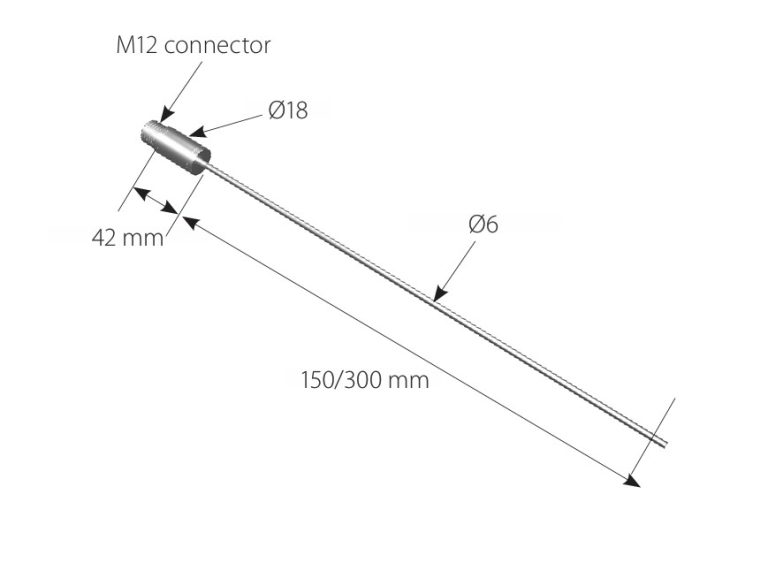

| S693 0003 | S020 Temperature Transmitter, -50 … +200 °C, 4 … 20 mA output loop powered, 6 x 150 mm sensor tube | Delivery time from 12 weeks | On request |
-
+
|
|
| S693 0004 | S020 Temperature transmitter, -50 … +200 °C, 4 … 20 mA output loop powered, 6 x 300 mm sensor tube | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S020 using the special form.
