The S120 Oil Vapor Sensor monitors oil vapor contents of compressed air and gases permanently or for spot checks when used as a portable unit with the S551 Portable Data Logger.
With simple installation and the outstanding performance of the S120 it makes it the ideal choice when residual oil vapor contents need to be measured. The built-in PID sensor provides highest accuracy for reliable oil vapor monitoring.
Made in Germany. brand SUTO, model S120
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $13 740
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The S120 oil vapor monitor for compressed air quality provides continuous or spot monitoring of oil vapor content in compressed air and gases. When used as a portable device together with the S551 data logger, it allows spot checks. Thanks to its simple installation and outstanding performance, the S120 is the ideal choice for measuring residual oil vapor content. The built‑in photoionization detector (PID) ensures the highest accuracy for reliable monitoring.
Monitoring oil vapor content is a mandatory requirement in many industries to prevent product contamination and risks to human health. The S120 sensor makes monitoring of oil vapor in the range of 0.001 to 5.000 mg/m³ accessible and reliable. Simply connect your compressed air system via the sampling hose and quick‑connect fitting.

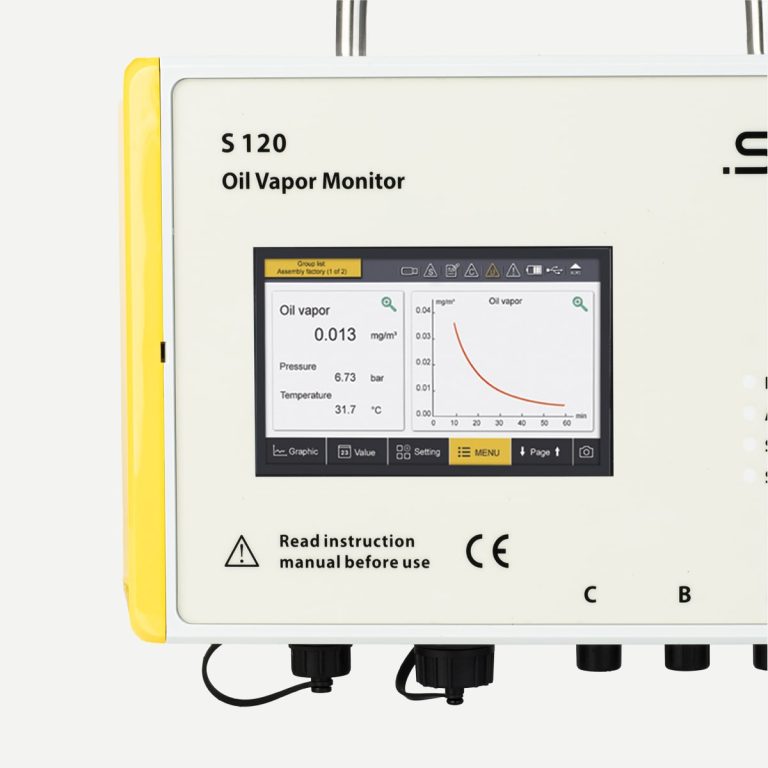

An optional integrated 5″ touch screen with data logger function is available, facilitating data viewing and storage. Various output signals – 4…20 mA (isolated), Modbus/RTU (RS485), Modbus/TCP (Ethernet), and USB – allow easy connection of the S120 oil vapor monitor to SUTO iTEC data loggers and displays or to central building management systems.
The integrated automatic calibration compensates temperature and humidity drifts in the supplied air, ensuring accurate, reliable, and long‑term stable measurement results.
To ensure compressed air quality, in addition to oil vapor monitoring, dew point measurement is a key parameter. Therefore, we offer an optional integrated dew point sensor (measuring range –100 … +20 °C Td), allowing both parameters to be measured in one compact device with an excellent price‑to‑performance ratio.
The S120 sensor features a guided measurement reporting system that simplifies the creation of compressed air purity reports for oil vapor and moisture content. These reports fully comply with ISO 8573‑1 (the international standard for air quality classification) with respect to moisture and oil vapor content. This enables users to efficiently monitor and document compressed air purity, maintaining the required standards for critical applications.
The SUTO exchangeable calibration service eliminates downtime and ensures continuous recording of oil vapor monitoring results.
The S120 is designed for efficient measurement of residual oil content in a compressed air system. Simple plug‑and‑play installation and outstanding performance make it the ideal choice when oil vapor needs to be measured and monitored. The sensor is used in various industries and applications, including:
The Guided Measurement feature in the S120 simplifies the process of monitoring and reporting oil vapor levels. This intuitive feature guides users step‑by‑step through the measurement process, allowing them to generate and export detailed compressed air purity reports as PDF files without the need for external software. The reports comply with ISO 8573‑1 requirements, ensuring that your compressed air system meets the required purity levels. With the S120, maintaining air quality standards is efficient, accurate, and straightforward.
Features
| MEASUREMENT | |
| Oil Vapor | |
| Measuring range | 0.001 … 5.000 mg/m³ (Based on 1000 hPa(a), 20 °C, 0 % relative humidity) |
| Accuracy | 5 % of reading ± 0.003 mg/m³ |
| Resolution | 0.001 mg/m³ |
| Selectable units | mg/m³ / ppm |
| Sensor principle | Photo ionization detector |
| Pressure | |
| Measuring range | 0 … 16 bar(g) |
| Accuracy | 0.5 % FS |
| Resolution | 0.01 bar(g) / 0.001 MPa / 0.1 psi |
| Selectable units | bar(g) (default), MPa and psi (on request) |
| Sensor principle | Piezo resistive pressure sensor |
| Dew Point (optional) | |
| Measuring range | -100 … +20 °C Td |
| Accuracy | ±1 °C Td (0 … 20 °C Td) ±2 °C Td (-70 … 0 °C Td) ±3 °C Td (-100 … -60 °C Td) |
| Resolution | 0,1 °C Td |
| Selectable units | °C Td / °F Td |
| Sensor principle | QCM + Polymer |
| Temperature | |
| Measuring range | 0 … 50 °C |
| Accuracy | 0.5 °C |
| Resolution | 0.1 °C |
| Selectable units | °C / °F |
| Sensor principle | NTC |
| SIGNAL INTERFACE & SUPPLY | |
| Outputs / Interface | |
| Analogue output | 4 … 20 mA, isolated |
| Alarm output | Relay, NO, 40 VDC,0.2A |
| Digitale Schnittstelle | Modbus/RTU (RS485) Modbus/TCP (Ethernet) & USB (only available for display version) |
| Display (optional) | 5” color touch screen with a data logger of 30 million measurement values |
| Supply | |
| Power supply | 24 VDC ± 5 %, 10 W |
| GENERAL DATA | |
| Measuring medium | Compressed air, N2, CO2 (for other gases please contact us) |
| Sample flow rate | < 2 l/min, measuring gas is released to ambient |
| Sample rate | 1/sec |
| Gas / Operating temperature | 0 … +50 °C |
| Transport temperature | -10 … +50 °C |
| Operating pressure | 3 … 15 bar(g) 0.5 … 2 bar(g) (optional) 0.60 … 1.07 bar(a) (ambient version only) |
| Gas humidity | < 40 % rel. humidity, no condensation |
| Gas connection | 6 mm quick connect |
| UV lamp lifetime | 9,000 working hours or 1 year, whichever comes first |

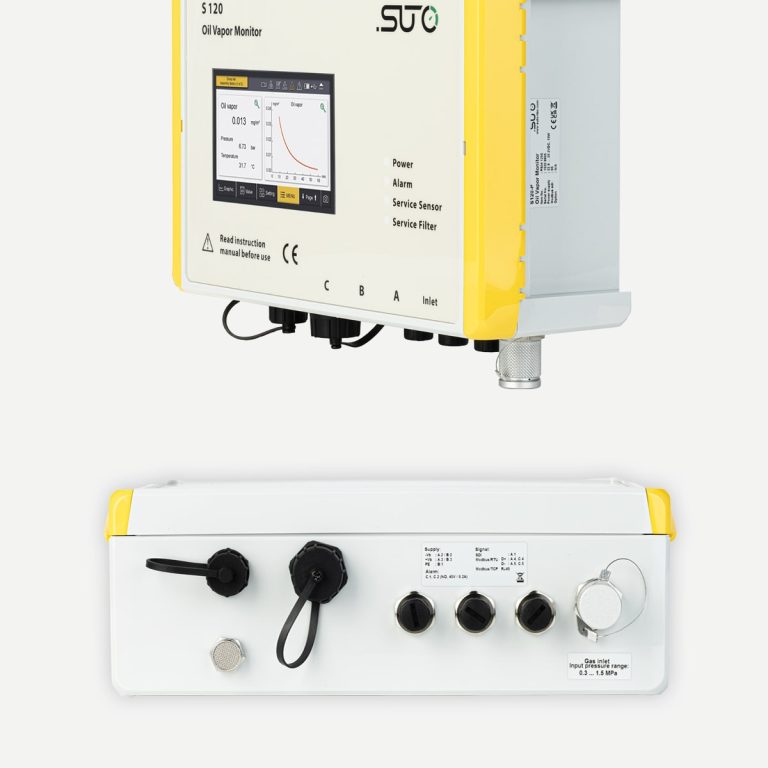

| Electrical connection | M12, USB, RJ45 |
| Settings | Various sensor settings can be performed through SUTO display units or through the related service software |
| Housing material | PC, Al alloy |
| Protection class | IP65 |

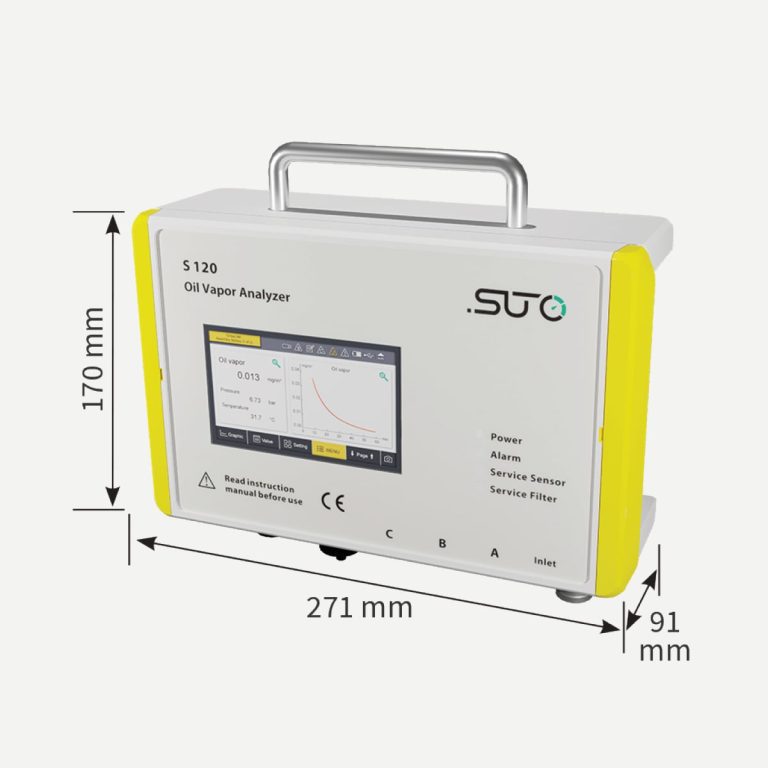

| Dimensions | 271 x 231 x 91 mm |
| Weight | 2.4 kg |
| Approval | CE |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| S604 1201 | S120 Oil Vapor Monitor, 0.001 … 5.000 mg/m³, 4 … 20 mA output, RS-485, Alarm output, supply 24 VDC, incl. power supply | Delivery time from 12 weeks | On request |
-
+
|
|
| S604 1202 | S120-P Oil Vapor Monitor, 0.001 … 5.000 mg/m³ , 4 … 20 mA output, RS-485, Alarm output, connectable to S551, transport case, incl. power supply | Delivery time from 12 weeks | On request |
-
+
|
|
| S604 1203 | S120 Oil Vapor Monitor, 5" touch screen, 0.001 … 5.000 mg/m³, 4 … 20 mA output, RS-485, alarm output, supply 24 VDC, incl. power supply | Delivery time from 12 weeks | On request |
-
+
|
|
| S604 1204 | S120 Oil Vapor Monitor, 0.001 … 5.000 mg/m³, 4 … 20 mA output, RS-485, Alarm output, supply 24 VDC, incl. power supply, low pressure version 0.5 ... 2 bar(g) | Delivery time from 12 weeks | On request |
-
+
|
|
| P604 1205 | S120-P Portable Oil Vapor Monitor, 5" touch screen, 0.001 … 5.000 mg/m³, 4 … 20 mA output, RS-485, alarm, 24 VDC supply, incl, transport case, power supply | Delivery time from 12 weeks | On request |
-
+
|
|
| P604 1215 | S120-Ambient Portable Oil Vapor Monitor for ambient air, 5” touch screen with data logger, 0.001 ... 5.000 mg/m³, 4 ... 20 mA, RS-485 (Modbus RTU), Ethernet (Modbus TCP), alarm output, integrated pump, supply voltage 24V DC, incl. power supply and transport case. | Delivery time from 12 weeks | On request |
-
+
|
|
| A1250 | S120: Integrated dew point sensor, -100 ... +20 °C Td (only for S604 1203 and P604 1205) | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1203 | Oil vapor zero filter, 1.5 MPa(g) max, with quick connectors at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1207 | S120/S600: Replacement kit for zero filter oil vapor analyzer | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0120 | S120/S130: Transport case | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S120 using the special form.
