The SUTO S601 Compressed Air Purity Monitor permanently measures and monitors compressed air contaminants like Dew Point, Oil Vapor, Particle Concentration and Pressure in real time. In doing so, the S601 brings together state-of-the-art technology in one easy to use package.
Made in Germany. brand SUTO, model S601
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $14 090
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The SUTO S601 stationary compressed air purity monitor is a comprehensive “5-in-1” solution for 24/7 air quality monitoring. The instrument combines state-of-the-art technology for measuring particles, dew point, oil vapor, temperature, and pressure into a single, easy-to-use wall‑mountable casing.
24/7 Continuous Monitoring for Product Protection
Unlike spot checks, permanent monitoring enables the immediate detection of contamination and guarantees that products comply with strict standards. In dynamic production environments, this is critical for preserving your reputation and ensuring customer safety.
ISO 8573-1 Compliance
Thanks to SUTO’s revolutionary sensors, the instrument continuously monitors and records all air purity parameters in accordance with the requirements of the international standard.
Technical Measurement Advantages:
Ease of Operation and Integration

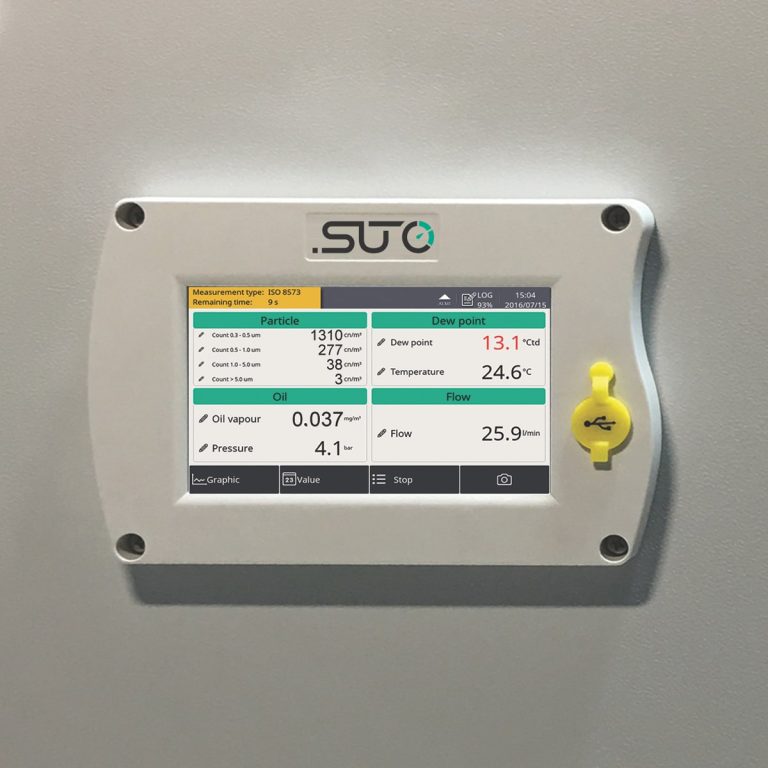

A 5‑inch color touch screen allows you to view data and adjust settings directly on site – no PC required. The built‑in data logger records all channels in parallel; real‑time information is transmitted to SCADA systems via Modbus/RTU and Modbus/TCP interfaces. Configurable alarm points trigger visual/audible indication when contamination thresholds are exceeded.
Simple Installation and Rugged Construction
Plug‑and‑play connection: just supply power and connect compressed air via a 6 mm quick‑connect fitting. The IP54‑rated casing is designed for industrial environments; an optional stainless steel version is available for pharmaceutical and medical applications.
The SUTO Exchange Service allows the measurement module to be replaced with a calibrated unit without stopping the monitoring process – ensuring uninterrupted data recording and audit compliance.
Applications
Benefits
Features
| MEASUREMENT | |
| Particle concentration | |
| Accuracy | Option A1263: 30 … 70 % von d > 0.1 μm 90 … 110 % von d ≥ 0.3 μm |
| Option A1260: 50 % @ 0.1 < d ≤ 0.15 μm 100 @ d > 0.15 μm |
|
| Selectable units | cn/m³, cn/ft³ |
| Measuring range | Option A1263: 0.1 < d ≤ 0.5 μm 0.5 < d ≤ 1.0 μm 1.0 < d ≤ 5.0 μm 5.0 μm < d Option A1260: 0.3 < d ≤ 0.5 μm 0.5 < d ≤ 1.0 μm 1.0 < d ≤ 5.0 μm 5.0 μm < d |
| Sensor | Laser optical particle counter |
| Sampling rate | 1 min. |
| Flow rate | 2.83 l/min |
| Pressure Dew Point | |
| Accuracy | ± 1 °C Td (0 … 20 °C Td) ± 2 °C Td (-70 … 0 °C Td) ± 3 °C Td (-100 … -70 °C Td) |
| Selectable units | °C, °F |
| Measuring range | -100 … +20 °C Td |
| Sensor | QCM + Polymer |
| Response time (t90) | -20 °C Td -> -60 °C Td = < 240 sec -60 °C Td -> -20°C Td = < 30 sec @ 4 l/min |
| Oil vapor | |
| Accuracy | 5 % of value +/- 0.003 mg/m³ |
| Detection limit | 0.003 mg/m³ |
| Resolution | 0.001 mg/m³ |
| Selectable units | mg/m³ |
| Measuring range | 0.001 … 5.000 mg/m³ |
| Sensor | PID (Photoionisation detector) |
| UV lamp lifetime | 9000 working hours |
| Sampling rate | 1 sec. |
| Pressure | |
| Accuracy | 0.5 % FS |
| Measuring range | 0.1 … 1.6 MPa(g) |
| Sensor | Piezo resistive sensor |
| Temperature | |
| Accuracy | ± 0.3 °C |
| Measuring range | -30 … +70 °C |
| Sensor | Pt100 |
| Reference conditions | |
| Selectable conditions | ISO1217 20 °C 1000 mbar |
| SIGNAL INTERFACE & SUPPLY | |
| Fieldbus | |
| Protocol | Modbus/TCP |
| Update rate | 1 / sec. |
| Alarm output | |
| Relay | 2 x Changeover Relay (freely programmable) |
| Rating | 230 VAC, 3A |
| Power Supply | |
| Voltage supply | 100 … 240 VAC, 50/60 Hz |
| Current consumption | 50 VA |
| Interface | |
| USB | USB Micro with OTG support |
| GENERAL DATA | |
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |
| Integrated | Touchscreen, Size: 5“, Resolution: 800 x 480 px |
| Data Logger | |
| Storage | Up to 3 million recorded data sets (10 channels each) |
| Material | |
| Process connection | Brass nickel-plated, FKM |
| Housing | Sheet steel, powder coated cabinet |
| Miscellaneous | |
| Electrical connection | AC Clamp Terminals, M12, RJ45 |
| Protection class | IP55 (cover lid closed) |
| Approvals | CE |
| Prozessanschluss | Micro quick connector, full passthrough, male (1.5 m hose with coupling included) |
| Weight | 15 kg |
| Operating conditions | |
| Medium | Compressed Air, Nitrogen N₂, Carbon dioxide CO₂ (software setting) |
| Medium quality | ISO 8573-1: 4.5.4 or better |
| Medium temperature | 0 … + 50 °C |
| Medium humidity | Medium humidity < 40 % rH, no condensation |
| Operating pressure | 0.3 … 1.5 MPa(g) |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | 0 … 90 % rH |
| Storage temperature | -10 … +50°C |
| Transport temperature | -10 … +50 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| D500 0601 | S601 Stationary Compressed Air Purity Monitor, Touch screen interface, Data logger, Metal cabinet, Supply voltage: 100 … 240 VAC, Inlet pressure: 0.3 … 1.5 MPa. | Delivery time from 12 weeks | On request |
-
+
|
|
| A1260 | S601: Integrated particle counter rig, 0.3 < d <= 0.5 ; 0.5 < d <= 1.0 ; 1.0 < d <= 5.0 μm, 2.83 l/min | Delivery time from 12 weeks | On request |
-
+
|
|
| A1263 | S601: Integrated particle counter rig, 0.1 < d <= 0.5 ; 0.5 < d <= 1.0 ; 1.0 < d <= 5.0 μm, 2.83 l/min | Delivery time from 12 weeks | On request |
-
+
|
|
| A1267 | S601: Integrated oil vapor sensor unit, 0.001 … 5.000 mg/m3 | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0602 | Purity test kit consisting of zero filters for oil vapor, particles, and a desiccant cartridge for low dew point creation | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1203 | Oil vapor zero filter, 1.5 MPa(g) max, with quick connectors at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1204 | Particle zero filter, 1.5 MPa(g) max, with quick connectors at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1205 | Dew point test kit for low dew point generation, with quick connectors at both sides | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S601 using the special form.
You can buy SUTO S601 in UAE at a price starting from 14090 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S601 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
