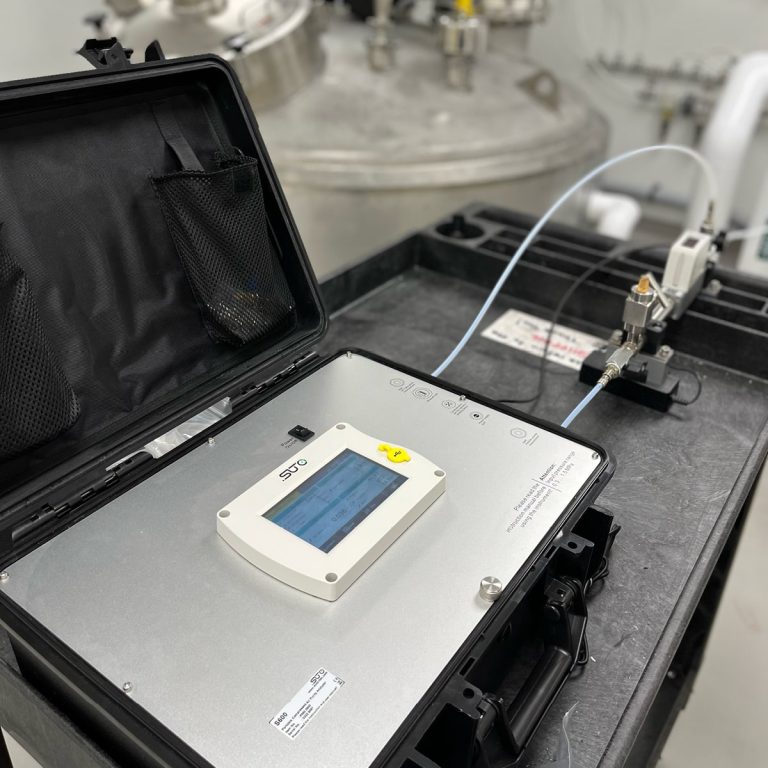

The S600 Portable Compressed Air Purity Analyzer provides an all-in-one solution to measure dew point, particle and oil vapor as specified in the ISO 8573-1 standards. It combines the latest sensor technology, software-guided measurements and a time-saving setup into one portable, touchscreen controlled multi-tool. With our S600, compressed air quality measurement audits can be finished in minimal time compared to traditional methods.
Made in Germany. brand SUTO, model S600
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $42 272
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

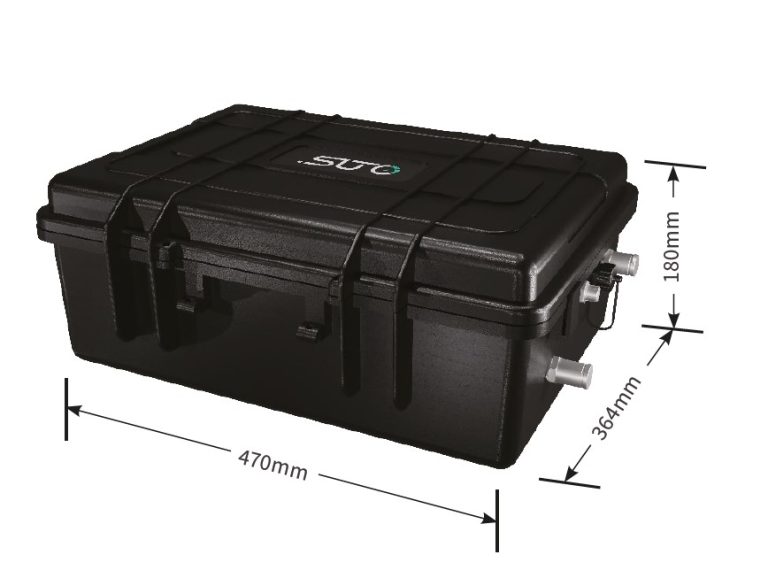

The S600 portable compressed air purity analyzer is a comprehensive solution for measuring dew point, particle concentration, and oil vapor in accordance with ISO 8573‑1. It combines the latest sensor technology, software‑guided measurements, and a time‑saving setup into a portable, touchscreen‑controlled multi‑tool. With the S600, a compressed air quality audit can be completed in minimal time compared to traditional methods. All equipment is supplied in a convenient transport case measuring 45 × 38.1 × 19.05 cm.
Many industries, such as pharmaceuticals and food, require high‑quality compressed air. Process and product safety can be ensured by frequent compressed air quality measurements complying with ISO 8573‑1. At the same time, compressed air quality monitoring helps avoid production downtime and improve system reliability.

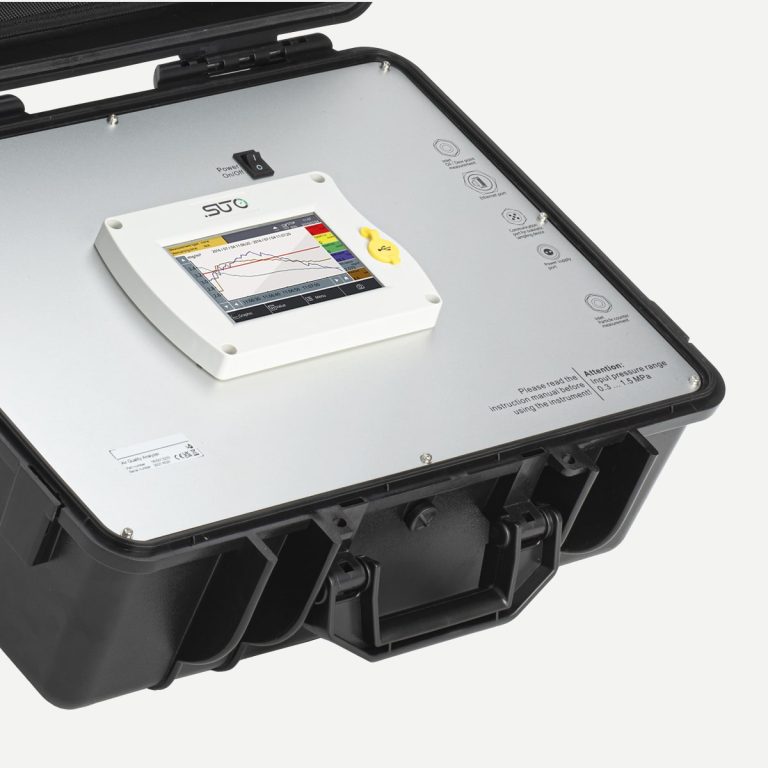

The S600 monitoring solution uses software‑guided measurements to provide maximum flexibility and accuracy. Thanks to the bright 5″ touch screen, you can manage and monitor all data directly at the measurement point. You receive a complete set in a single portable transport case that can easily be taken anywhere. The dimensions of the S600 case are 45 × 38.1 × 19.05 cm.
The S600 portable compressed air purity analyzer accurately measures dew point / moisture, particle concentration, temperature, pressure, and oil vapor all in one device. Thanks to the integrated data logger, recording these parameters for subsequent data analysis has never been easier.
Particle measurement is possible in the ranges 0.1 – 0.5 µm, 0.5 – 1.0 µm, and 1.0 – 5.0 µm using the latest laser detection technology. The measurement methods comply with ISO 8573‑4 (together with the isokinetic sampling device). Counting efficiency according to ISO 21501‑4: 30 – 70 % for particles larger than 0.1 µm, 90 – 110 % for particles larger than or equal to 0.3 µm.
Oil vapor measurement in the range of 0.001 – 5.000 mg/m³ is provided by a state‑of‑the‑art photoionization detector (PID) with self‑calibration. The measuring range corresponds to ISO 8573‑1 Classes 1 to 5 with high accuracy (accuracy of 5 % of reading ± 0.003 mg/m³).
Pressure measurement utilizes state‑of‑the‑art sensor technology, providing important additional data about the compressed air system quality. The integrated data logger records all channels in parallel for later analysis. The 5″ touch screen allows you to interact with the device on site; there is no need for a PC to manage the instrument.
For particle measurements according to ISO 8573, an isokinetic sampling device has been developed. This accessory allows the air flow to be monitored and regulated during particle measurement to ensure correct isokinetic sampling.
The S600 analyzer allows users to create powerful PDF reports directly on site. The reports follow the recommendations stated in ISO 8573. Customer‑related data as well as service provider details can be entered on‑screen, making it even easier to perform audits and to create meaningful reports. PDF reports can be created from any recordings on the device and are copied on the fly to a connected USB drive for direct print‑outs.
Thanks to the integrated USB port on the external housing for connecting a 4G modem, the S600 portable device can be easily connected to S4A software and monitored remotely. This eliminates the need for a Wi‑Fi connection. The USB 4G dongle is an optional feature and can be ordered together with the S600 or added later. A SIM card is required to use this new feature.
The SUTO exchangeable calibration service eliminates downtime and allows users to perform continuous recording of dew point measurements.
Applications
Features
The video shows the installation and configuration of the S600 compressed air purity analyzer with 4G/LTE support.
| MEASUREMENT | |
| Particle concentration | |
| Accuracy | Counting Efficiency according ISO 21501-4 30 … 70 % of d > 0.1 μm 90 … 110 % of d ≥ 0.3 μm |
| Selectable units | cn/m³, cn/ft³ |
| Measuring range | 0.1 < d ≤ 0.5 μm 0.5 < d ≤ 1.0 μm 1.0 < d ≤ 5.0 μm 5.0 μm < d |
| Sensor | Laser optical particle counter |
| Sampling rate | 1 min. |
| Flow rate | 2.83 l/min |
| Pressure Dew Point | |
| Accuracy | ± 1 °C Td (0 … 20 °C Td) ± 2 °C Td (-70 … 0 °C Td) ± 3 °C Td (-100 … -70 °C Td) |
| Selectable units | °C, °F |
| Measuring range | -100 … +20 °C Td |
| Sensor | QCM + Polymer |
| Response time (t90) | -20 °C Td -> -60 °C Td = < 240 sec -60 °C Td -> -20°C Td = < 30 sec @ 4 l/min |
| Oil vapor | |
| Accuracy | 5 % of value +/- 0.003 mg/m³ |
| Detection limit | 0.003 mg/m³ |
| Resolution | 0.001 mg/m³ |
| Selectable units | mg/m³ |
| Measuring range | 0.001 … 5.000 mg/m³ |
| Sensor | PID (Photoionisation detector) |
| UV lamp lifetime | 9000 working hours |
| Sampling rate | 1 sec. |
| Pressure | |
| Accuracy | 0.5 % FS |
| Measuring range | 0.1 … 1.6 MPa(g) |
| Sensor | Piezo resistive sensor |
| Temperature | |
| Accuracy | ± 0.3 °C |
| Measuring range | -30 … +70 °C |
| Sensor | Pt100 |
| Reference conditions | |
| Wählbare Bedingungen | ISO1217 20 °C 1000 mbar |
| SIGNAL INTERFACE & SUPPLY | |
| Fieldbus | |
| Protocol | Modbus/TCP |
| Update rate | 1 / sec. |
| Power Supply | |
| Voltage supply | Mains supply adapter (AC/DC) Input: 100 … 240 VAC, 50/60 Hz, 1.4 A Output: 24 VDC, 2.5 A, 60 W max. |
| Current consumption | 1.4 A |
| Interface | |
| USB | USB Micro with OTG support |
| LTE/4G USB | USB Port for 4G/LTE Modem |
| GENERAL DATA | |
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |
| Integrated | Touchscreen, Size: 5“, Resolution: 800 x 480 px |
| Data Logger | |
| Storage | Up to 3 million recorded data sets (10 channels each) |
| Report | Integrated report generator for PDF export |
| Material | |
| Process connection | Brass nickel-plated, FKM |
| Housing | PC + ABS, Al alloy |
| Miscellaneous | |
| Electrical connection | 2-Pin, push-pull socket |
| Protection class | IP54 (cover lid closed) |
| Approvals | IEC 61326-1 |
| Process connection | Micro quick connector, full passthrough, male (1.5 m hose with coupling included) |
| Weight | 9.8 kg |
| Operating conditions | |
| Medium | Compressed Air, Nitrogen N2, Carbon dioxide CO₂ (software setting) |
| Medium quality | ISO 8573-1: 4.4.4 or better |
| Medium temperature | 0 … + 50°C |
| Medium humidity | Medium humidity < 40 % rH, |
| no condensation | -30 … 70 °C |
| Operating pressure | 0.3 … 1.5 MPa(g) |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | 0 … 90 % rH |
| Storage temperature | -10 … + 50 °C |
| Transport temperature | -10 … + 50°C |
| MEASUREMENT | |
| Measuring unit | Measuring unit Sampling pipe with integrated isokinetic sampling tube, flow regulation and control by integrated flow sensor, to be used for particle measurements according to ISO 8573-4 |
| Flow meter unit | Thermal mass flow meter (only for isokinetic flow setup, no system flow measurement) |
| Sensor | Thermal mass flow sensor |
| Accuracy | 3 % o. RDG |
| SIGNAL INTERFACE & SUPPLY | |
| Connection | Communication to S600 (cable included) |
| Update rate | 1 / sec. |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| P560 0600 | S600 Portable Compressed Air Purity Analyzer, Touch screen interface, Data logger, guided measurement, PDF report generator Particle d: 0.1 < d <= 0.5 µm / 0.5 < d <= 1.0 µm / 1.0 < d <= 5.0 µm / d > 5.0 µm, Dew point: -100 … +20°C Td, Oil vapor: 0.001 ... 5.000 mg/m3 | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0600 | S600: Isokinetic sampling device | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0602 | Purity test kit consisting of zero filters for oil vapor, particles, and a desiccant cartridge for low dew point creation | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1203 | Oil vapor zero filter, 1.5 MPa(g) max, with quick connectors at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1204 | Particle zero filter, 1.5 MPa(g) max, with quick connectors at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 1205 | Dew point test kit for low dew point generation, with quick connectors at both sides | Delivery time from 12 weeks | On request |
-
+
|
|
| A1670 | USB 4G dongle, including S4A software | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S600 using the special form.
You can buy SUTO S600 in UAE at a price starting from 42272 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S600 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
