Key Components:
Purpose: A complete, field-ready Tier 1 fiber certification solution optimized for Multimode networks in LAN and data center environments. Performs a rapid 4-second dual-ended bi-directional Autotest with built-in Encircled Flux compliance, eliminating the need for external mode conditioning adapters. Supports Hybrid Powered Fiber Resistance & Voltage Test and includes native 100/1000BASE‑T SNR Testing and BASE‑T Network Connectivity, providing end-to-end physical and logical link verification for fiber contractors. Singlemode capability can be added later with the optional AD-SM-K01E adapter kit.
Made in USA. brand AEM, model TESTPRO-K11E-MM
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $7 100
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The K11E-MM is used by Cable Contractors. This kit provides Fiber Optic certification for Multimode fiber. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a multifunction Cable Certifier built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For fiber applications, it delivers a rapid 4-second Autotest that performs dual-ended bi-directional loss, length, and optical power meter measurements. The platform features a 5-inch capacitive touchscreen, hot-swappable fiber adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone fiber validators. Each unit includes USB interfaces and TestDataPro cloud/PC integration for automated reporting.
The TestPro K11E-MM is a purpose‑built fiber certification solution tailored for network infrastructure professionals who work exclusively with multimode fiber optic cabling systems (such as LANs and data centers) and need reliable Tier 1 (insertion loss) measurements. The package comes fully equipped with multimode fiber adapter kits, a video inspection probe, reference grade test cords, connector interfaces, and end‑face cleaning tools. Singlemode fiber support can be added later by purchasing the AD-SM-K01E Singlemode Fiber Test kit.
Key Features:
Kit contains:
Platforms and Calibration:
Fiber Test Adapter:
Reference Cords, Connectors and Couplers:
SC Interface and Inspection:
Accessories and Documentation:
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
| Device Type | Multifunction Cable Certifier (Fiber Optic) |
| Supported Fiber Types | Multimode (MM). Singlemode support can be added with optional AD-SM-K01E adapter kit |
| Fiber Optic Certification | Tier 1 (insertion loss) for Multimode Includes Hybrid Powered Fiber Resistance & Voltage Test |
| Built-in Test Functions | Visual Fault Locator (VFL), Voltmeter, Inspection Probe (PROBE-FIBER-INSP) |
| Connector Support | LC and SC (adapters and reference cords included) |
| Wired Network Testing | 100/1000BASE-T SNR, network discovery, ping, traceroute (via built-in 1 GbE port) |
| Wireless Network Testing | Wi-Fi analysis, AP discovery, signal strength, ping (requires optional Edimax USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li-Ion, 13,200 mAh) |
| Test Time | Fiber Autotest: 4 sec (dual-ended bi-directional) |
| Multimode Adapter | 850/1300nm LED source, Encircled Flux compliant, supports OM5/OM4/OM3/OM2 multimode fiber (50/125 µm, 62.5/125 µm), length up to 2 km (max 10 dB loss), loss measurement 0 to -10 dB |
| Optional Expansion | AD-SM-K01E Singlemode Fiber Test kit can be added for future singlemode certification (1310/1550nm, length up to 20 km) |
| VFL / Hybrid Fiber Meter | 650nm VFL; 0-60V DC and 0-100 Ω measurement for hybrid powered fiber |
| Compliance (Fiber) | TIA-568.3-E, ISO/IEC 14763-3 Ed 2.1 |

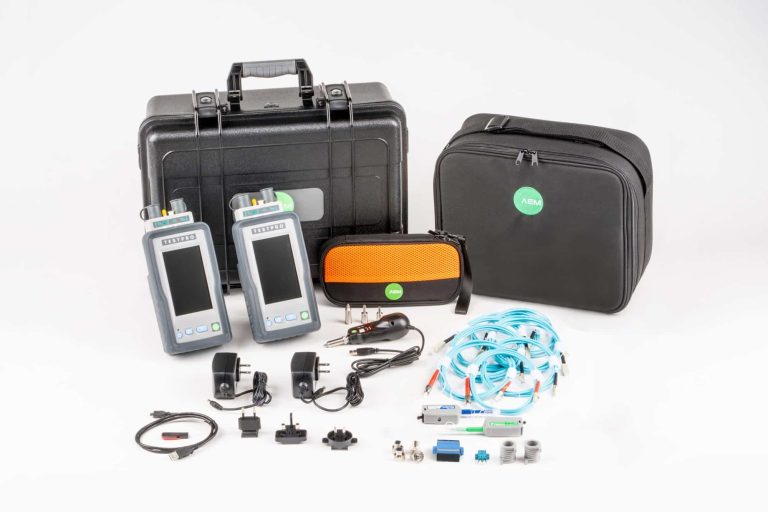

| Kit Includes | Two TestPro CV100 handsets, MM fiber adapter, calibration certificates, power adapters, USB cable, carrying straps, soft cases, cleaning kits |
| Ordering Models | TESTPRO-K11E-MM, TESTPRO-K11E-MM-ECB (with 1-year extended care) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| TESTPRO-K11E-MM | Base Multimode Kit — Complete Tier 1 MM Certification Two TestPro CV100 platforms (calibrated) AD‑MM‑01 kit (850/1300 nm, VFL, volt meter) PROBE‑FIBER‑INSP scope, MM‑SC‑K01 kit, cleaning kits Full reference cords, interchangeable connectors, coupler 1G Ethernet (100/1000BASE‑T SNR, discovery, ping, traceroute) Wi‑Fi analysis (requires optional Edimax adapter, sold separately) TestDataPro (PC + Cloud), soft carry cases, all accessories Extended Care not included |
Delivery time from 12 weeks | from 7 100$ |
-
+
|
|
| TESTPRO-K11E-MM-ECB | + Extended Care Kit Same as Base Multimode Kit + 1‑Year Extended Care |
Delivery time from 12 weeks | from 7 420$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K11E-MM using the special form.
You can buy AEM TESTPRO-K11E-MM in UAE at a price starting from 7100 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM TESTPRO-K11E-MM price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
