SUTO pressure transmitters are made to seamlessly integrate into your compressed air monitoring systems and provide reliable measurement results for industrial applications.

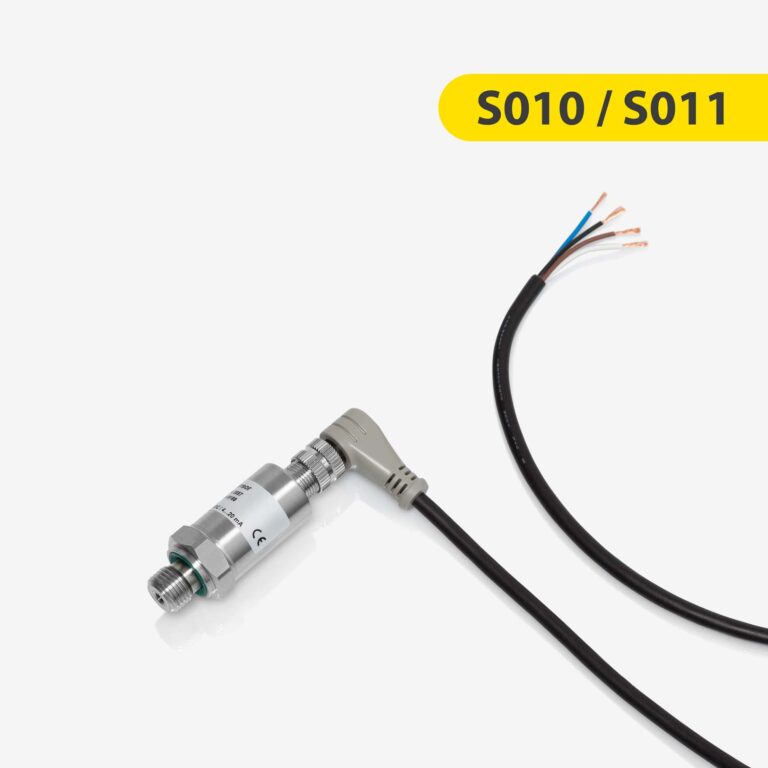

Made in Germany. brand SUTO, model S010/S011
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $236
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

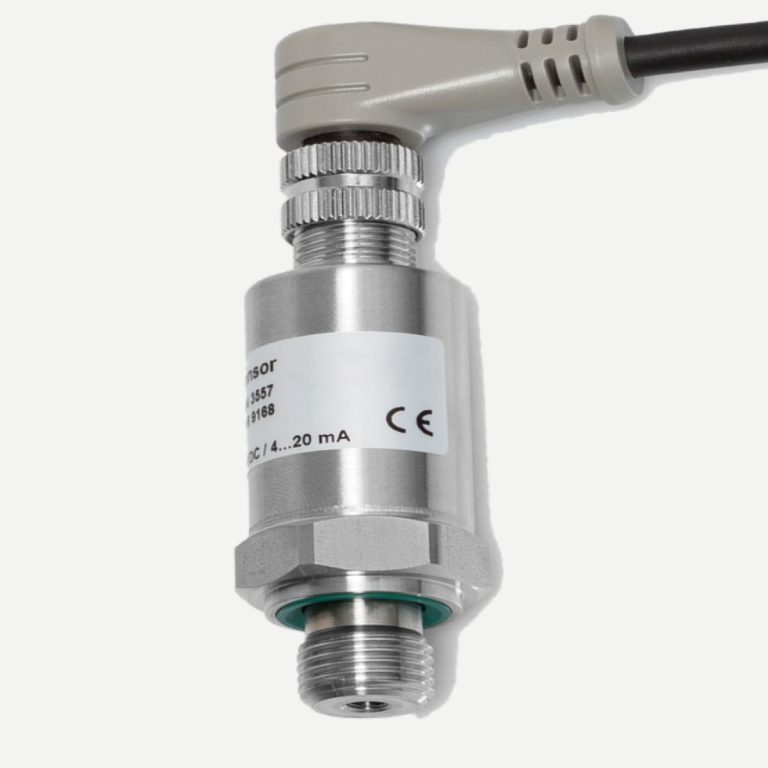

Pressure is a key point in a compressed air system. This makes it crucial to keep the pressure at a constant and reliable level. Monitoring and measuring the compressed air pressure is needed to save energy, identify degrading systems at an early stage and keep production machinery running. SUTO S010/S011 is high accurate and affordable industrial pressure sensor for manifold applications.
Available in Three Ranges
Signal Output
The pressure sensor is offered as a 2-wire analog output version for easy connection. For modern monitoring solutions, the Modbus/RTU version allows to connect multiple sensors easily to a single data logger.
Features
| MEASUREMENT | |
| Pressure | |
| Accuracy | ±0.5 % F.S (optional ±0.25 % F.S) |
| Measuring range | 0 … 4.0 MPa |
| Response time (t90) | ≤1 ms (@ 90 % F.S) |
| SIGNAL INTERFACE & SUPPLY | |
| S010 Analog output (for 4 … 20 mA type) | |
| Signal | 4 … 20 mA, (2-wire loop powered) |
| Load | Max. 250 Ohm |
| S011 Fieldbus (for Modbus/RTU type) | |
| Protocol | Modbus/RTU |
| BUS-Length | ≤ 1000 m |
| Supply | |
| Voltage supply | 11 … 36 VDC |
| Current consumption | Max. 20 mA |
| Data interface | |
| Connection | M12 Connector |
| GENERAL DATA | |
| Material | |
| Process connection | Stainless steel 1.4301 |
| Housing | Stainless steel 1.4301 |
| Metal parts | Stainless steel 1.4301 |
| Miscellaneous | |
| Electrical connection | M12 Connector |
| Protection class | IP67 |
| Approvals | CE |
| Process connection | G1/4″ (ISO 228/1) |
| Operating conditions | |
| Medium temperature | -40 … +85 °C |
| Ambient temperature | -40 … +85 °C |
| Storage temperature | -40 … +125 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| S694 2564 | S010 Pressure Transmitter, 0 … 0.16 MPa (abs.), 2-wire 4 … 20 mA output, M12 connector, G1/4" thread | Delivery time from 12 weeks | On request |
-
+
|
|
| S694 3557 | S010 Pressure Transmitter, 1.6 MPa(g), 4 … 20 mA output, M12 connector | Delivery time from 12 weeks | On request |
-
+
|
|
| S694 3558 | S010 Pressure Transmitter, 4.0 MPa(g), 4 … 20 mA output, M12 connector | Delivery time from 12 weeks | On request |
-
+
|
|
| S694 2559 | S011 Pressure Transmitter, 0 … 1.6 MPa(g), Modbus/RTU, M12 connector | Delivery time from 12 weeks | On request |
-
+
|
|
| S694 2562 | S011 Pressure Transmitter, 0 … 4.0 MPa(g), Modbus/RTU output, M12 connector | Delivery time from 12 weeks | On request |
-
+
|
|
| S694 2563 | S011 Pressure Transmitter, 0 … 0.16 MPa (abs.), Modbus/RTU output, M12 connector, G1/4" thread | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S010/S011 using the special form.
You can buy SUTO S010/S011 in UAE at a price starting from 236 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S010/S011 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
